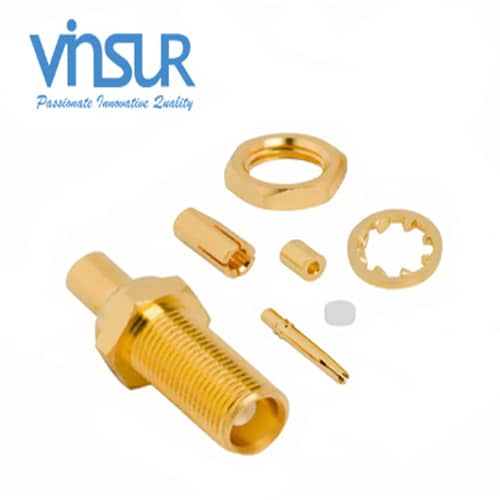

11721211 — RF CONNECTOR – 50 OHMS , MCX FEMALE , STRAIGHT , BULK HEAD REAR MOUNT , CRIMP TYPE , RG1.13 CABLE
- RF CONNECTOR: 50Ω
- MCX FEMALE
- STRAIGHT
- BULKHEAD REARMOUNT
- CRIMP TYPE
- RG-1.13 CABLE
Click Here to download the datasheet
Description
The MCX (Micro Coaxial) series is available with 50 or 75 ohm options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy Snap-On/ snap-off coupling. MCX connectors were introduced in the 1980s and conform to the European CECC 22220 spec.
| CONNECTOR SPECIFICATIONS | |
| Gender | Female (Jack) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold Plating |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Solder |
| Mounting Features | Bulkhead |
| Insulator Material | PTFE |
| Cable Type | 1.13 mm Micro-cable |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR(Max) | ≤1.2 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
