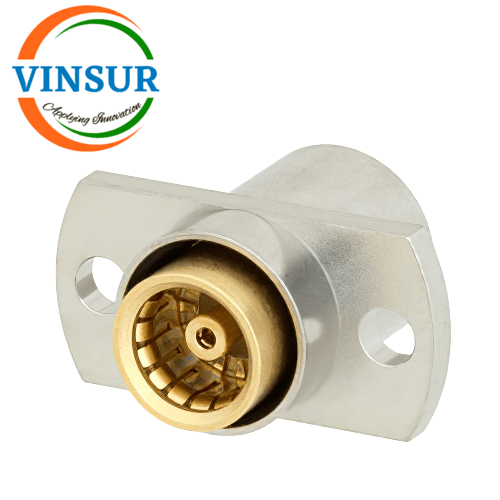

11G2133C-30 — RF CONNECTOR – 50OHMS , BMA FEMALE , STRAIGHT , 2 HOLE FLANGE , FOR RG405 CABLE
- RF CONNECTOR: 50Ω
- BMA
- Jack (Female)
- Straight
- Solder Type
- RG-405 CABLE
Applications:
- General Purpose Test
- Blind Mating
- Base Station
- Rack and Panel
Click Here to download the datasheet
Click Here to download the Drawing
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Stainless Steel |
| Body Material | Beryllium copper |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG405 |
| VSWR | 1:27:1 |
| Mounting Feature | 2-hole flange |
| Max Frequency (GHz) | DC to 22Ghz |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
