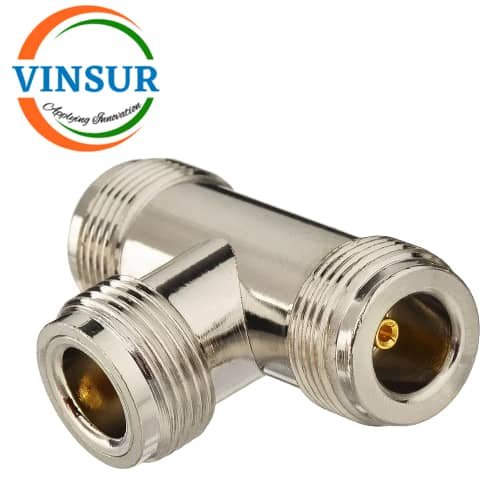

41120123– RF ADAPTER – 50 OHMS, N-TYPE T -ADAPTER FEMALE-FEMALE-FEMALE

SKU: 41120123

RF ADAPTER: 50Ω
N-TYPE TEE-TYPE
TEE-TYPE ADAPTER
FEMALE-FEMALE-FEMALE

Click Here to download the datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Series	N-type
Tee Adapter Gender	Jack- Jack -Jack
Orientation	T-Adapter
Impedance (Ohms)	50
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Polarity	Standard
Max Frequency (GHz)	DC to 6GHz
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
