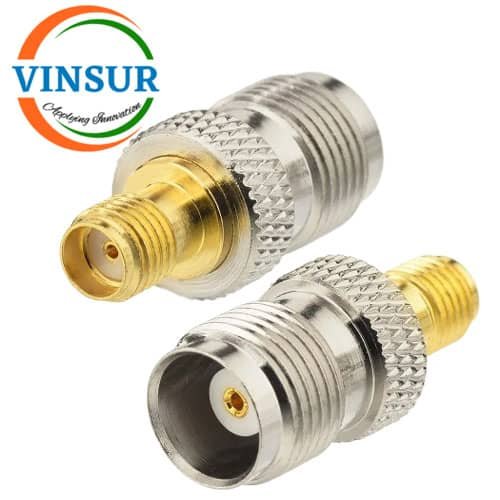

41220421 — RF ADAPTER – 50 OHMS, SMA FEMALE TO TNC FEMALE STRAIGHT ADAPTER

SKU: 41220421

RF Adapters
SMA Adapters
SMA to TNC Adapter
Female to Female
50Ω

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	SMA
Gender1	Jack(Female)
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	TNC
Gender2	Plug(Male)
Orientation	Straight
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Max Frequency (GHz)	DC to 11GHz
Voltage Rating	335 Veff @ Sea Level
VSWR(Max)	≤1.2 @6GHz
Min. Temp. (Celsius)	-55 °C
Max. Temp. (Celsius)	+155°C
