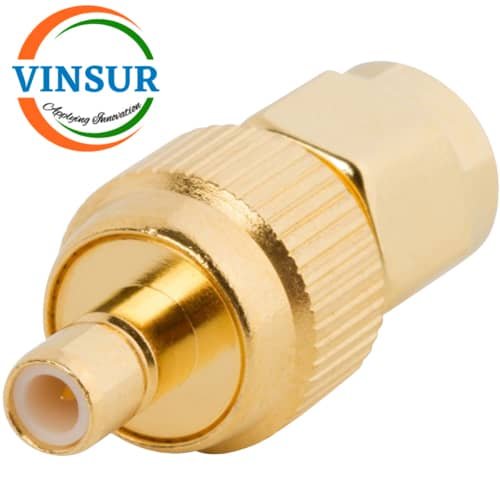

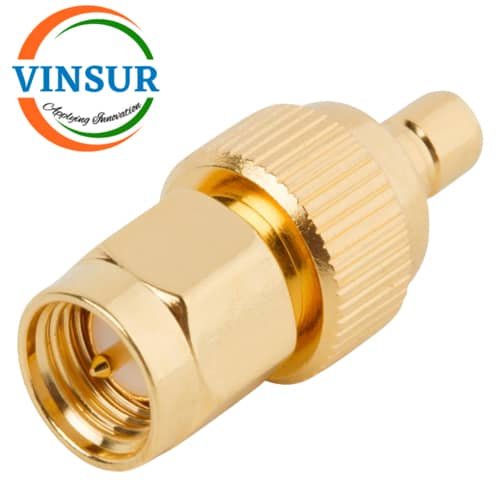

41420511 — RF ADAPTER – 50 OHMS, SMA FEMALE TO SMB MALE STRAIGHT ADAPTER

SKU: 41420511

RF Adapters
SMA Adapters
SMA to SMB Adapter
50Ω

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	SMA
Gender1	Plug(Male)
Orientation	Straight
Body Plating	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	SMB
Gender2	Jack(Female)
Orientation	Straight
Body Plating	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Mounting Features	–
Impedance (Ohms)	50
Insulator Material	PTFE
Max Frequency (GHz)	DC to 4 GHz
VSWR(Max)	≤1.2
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
