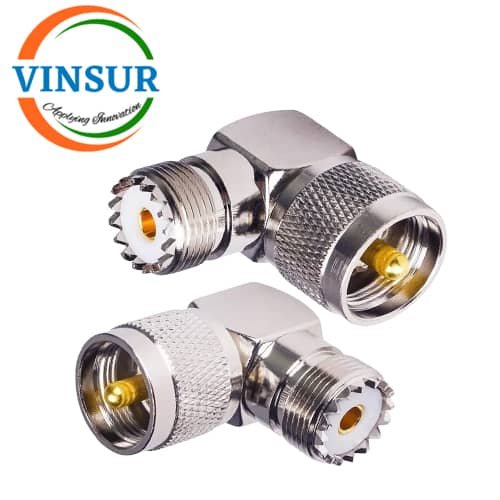

41C10C22 — RF ADAPTER – 50 OHMS, UHF MALE TO UHF FEMALE RIGHT ANGLE ADAPTER

SKU: 41C10C22

RF Adapters
UHF Adapters
UHF to UHF Adapters

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	UHF
Gender1	Plug(Male)
Orientation	Right Angle
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	UHF
Gender2	Jack(Female)
Orientation	Right Angle
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Impedance (Ohms)	50
Insulator Material	PTFE
Mounting Feature	–
Max Frequency (GHz)	DC to 2Ghz
VSWR	≤1.25
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
