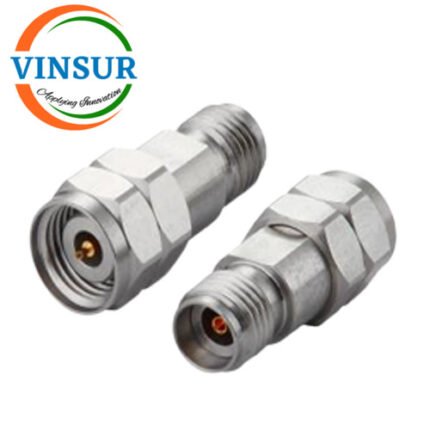

SMA MALE(3.5MM) TO SMA FEMALE (2.92MM)STRAIGHT ADAPTER
41G16I21-33— RF ADAPTER – 50OHMS, SMA MALE(3.5MM) TO SMA FEMALE (2.92MM)STRAIGHT ADAPTER
PART NO:-41G16I21-33
Description
| Type | RF Adapter |
| Gender1 | Male |
| Adapter Side 1 Series | (3.5MM) |
| Gender2 | Female |
| Adapter Side 2 Series | (2.92MM) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| Mating Cycles | 500 |
| Max Frequency (GHz)Â Â Â Â Â Â | 40 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | 105°C |
