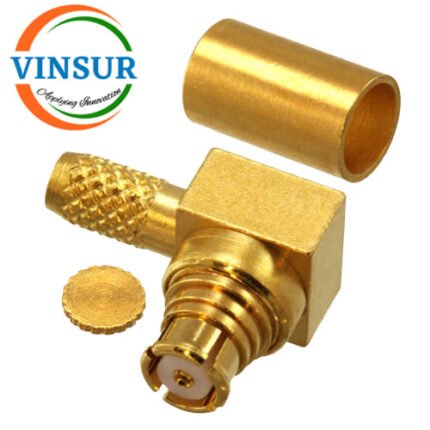

VSW-11H22912– RF CONNECTOR – 50 OHMS , SMP FEMALE , RIGHT ANGLE , CRIMP TYPE , FOR RG178 CABLE
- RF CONNECTOR: 50Ω
- SMC MALE
- RIGHT ANGLE
- CRIMP TYPE
- RG-178 CABLE
Click Here to download the datasheet
Description
The SMP interface is a sub miniature interface in the same scale as MMCX connectors but offers a frequency range of DC to 40 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and Snap-On mating styles.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Centre Conductor | Beryllium Copper |
| Body Material | Brass |
| Body Finish | Gold |
| VSWR | 1.30 max |
| Insulator Material | PTFE |
| Cable Type | RG178 |
| Max Frequency (GHz) | DC to 3 GHz |
| Polarity | Standard |
| Thread Direction | Standard |
| Voltage Rating | 500 V |
| Operating Temperature | -65°C ~ 155°C |
