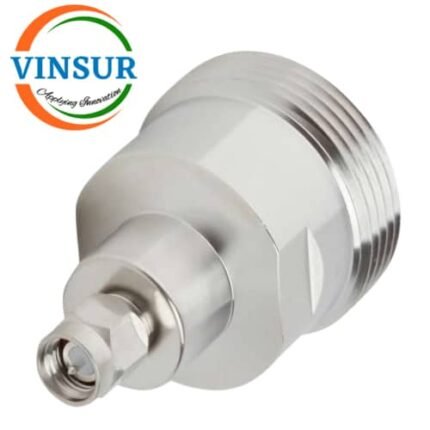

VSW-41F20411-ADP — RF CONNECTOR – 50 OHMS, 7-16 FEMALE TO SMA MALE STRAIGHT ADAPTER
- RF Adapters
- 7/16 Adapters
- 7/16 to SMA Adapter
- Male to Female
- Straight
- 50Ω
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 7/16 |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMA |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR(Max) | ≤1.15 Max |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
