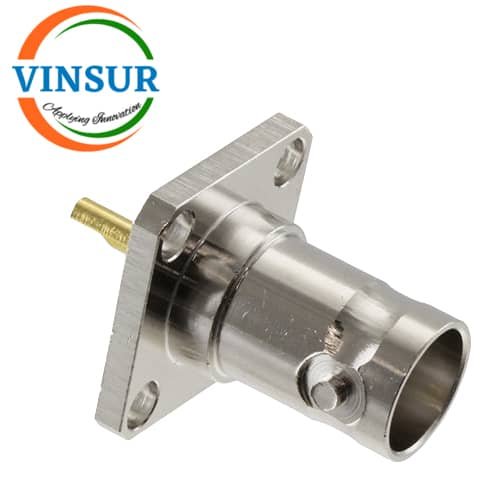

VSW-BNC-F-PNM-4G– RF CONNECTOR – 50OHMS , BNC FEMALE CONNECTOR PANEL MOUNT
- RF CONNECTOR: 50Ω
- BNC FEMALE
- STRAIGHT
- SOLDER CUP
- PCB MOUNT
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Connector Style | BNC |
| Gender | Jack (Female) |
| Orientation | Straight |
| Contact Termination | Solder Cup |
| Shield Termination | Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Centre Contact Material | Phosphor Bronze |
| Body Material | Brass |
| Contact Finish | Gold |
| Housing Colour | Silver |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC-4Ghz |
| VSWR | ≤1.25 |
| Polarity | Standard |
| Thread Direction | Standard |
| Voltage Rating | 500 V |
| Mating Cycles | 500 |
| Operating Temperature | -65°C ~ 165°C |
