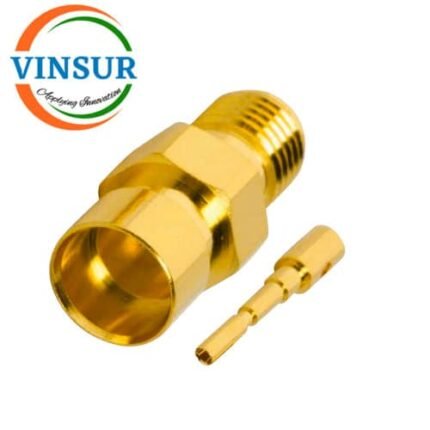

1152103E — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT , SOLDER TYPE , RG401 (0.250 INCH) CABLE
- RF CONNECTOR: 50Ω
- SMA FEMALE
- STRAIGHT
- CRIMP TYPE
- RG-401(0.250) CABLE
Click Here to download the datasheet
For Orders & Info
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Brass, Gold plating |
| Body Material | Gold plating |
| Coupling Nut | Brass, Gold plating |
| VSWR | ≤1.2 |
| Insulator Material | PTFE |
| Cable Type | RG401(0.250) |
| Max Frequency (GHz) | DC to 18GHz |
| Polarity | Standard |
| Contact Termination | Solder |
| Temp (Max Degrees Celsius) | 165° |
| Temp (Min Degrees Celsius) | -65° |
