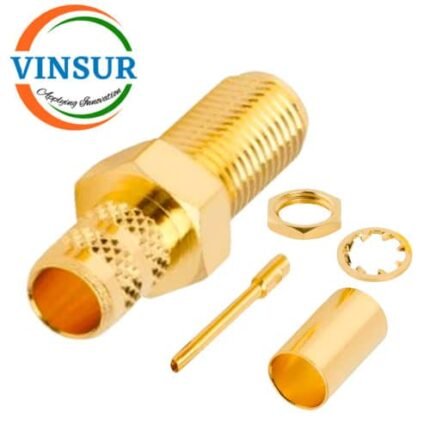

11521216 — RF CONNECTOR – 50OHMS , SMA FEMALE , STRAIGHT , BULK HEAD REAR MOUNT , CRIMP TYPE , LMR-240 CABLE
- RF CONNECTOR: 50Ω
- SMA FEMALE
- STRAIGHT
- BULKHEAD REARMOUNT
- CRIMP TYPE
- LMR-240 CABLE
Click Here to download the datasheet
For Orders & Info
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| Mounting Features | Bulkhead Rear Mount |
| Max Frequency (GHz) | DC to 12.4GHz |
| VSWR | ≤1.2 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
