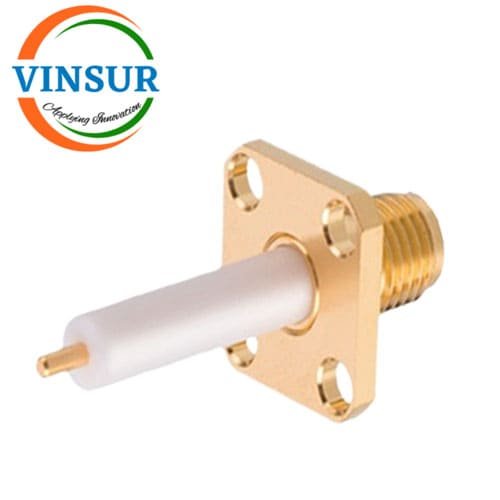

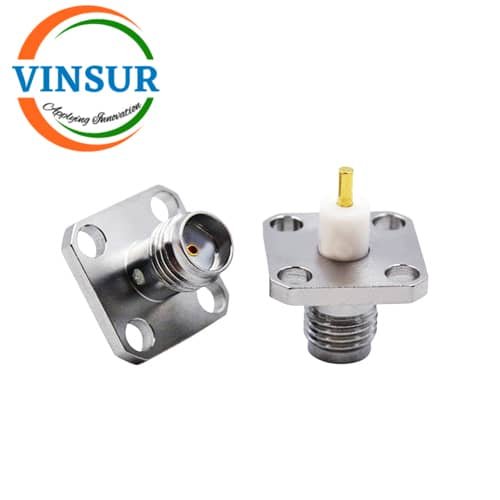

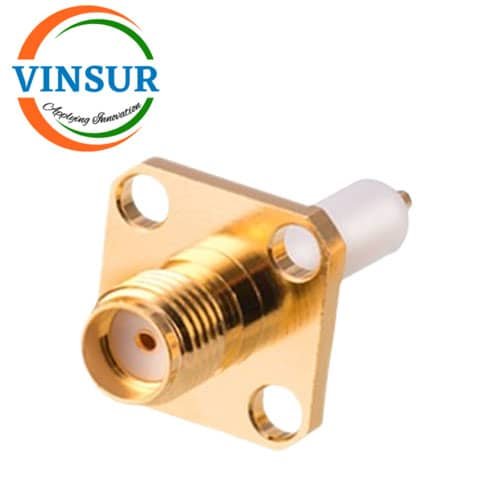

11521491-55 — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT ,4-HOLE FLANGE 4MM EXTEND TEFLON PCB SOLDER TYPE CONNERCTOR
- RF CONNECTOR: 50Ω
- SMAÂ FEMALE
- STRAIGHT
- 4-HOLE FLANGE
- PCB
Click Here to download the datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Solder type |
| Impedance (Ohms) | 50 |
| Body Finish | Stainless Steel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| VSWR | 1.35 max |
| Insulator Material | PTFE |
| Connector | SMA |
| Coupling Mechanism | Threaded |
| Mounting Feature | 4-Hole flange |
| Max Frequency (GHz) | 18 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
| contact resistance | Center conductor ≤3mΩ,Outer conductor ≤2mΩ |
| insulation resistance | ≥5000MΩ |
| Durability | ≥500 |
