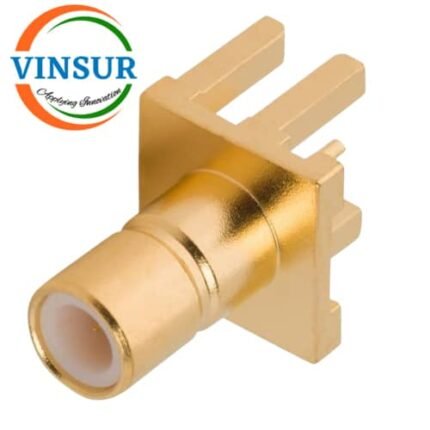

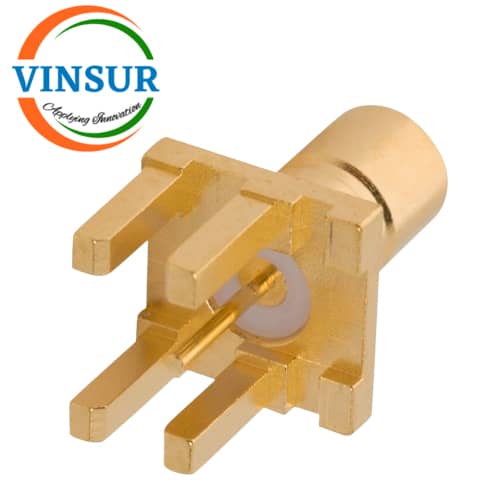

11621050 — RF CONNECTOR – 50 OHMS , SMB FEMALE , STRAIGHT , PCB-EDGE MOUNT
- RF CONNECTOR: 50Ω
- SMB FEMALE
- STRAIGT
- PCB – Edge Mount
Click Here to download the datasheet
Description
The SMB interface features a snap-on coupling mechanism and is available in 50Â and 75 ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB – Edge Mount |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Mounting Features | Edge Mount |
| Insulator Material | PTFE |
| VSWR | ≤1.25 |
| Max Frequency (GHz) | DC to 6GHz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
