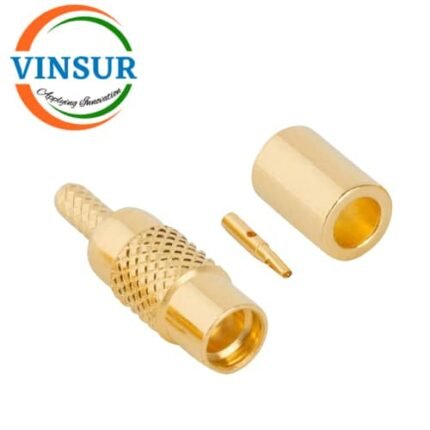

11821012 — RF CONNECTOR – 50 OHMS , MMCX FEMALE , STRAIGHT , CRIMP TYPE , RG178 CABLE
- RF CONNECTOR: 50Ω
- MMCXÂ FEMALE
- STRAIGHT
- CRIMP TYPE
- RG-178 CABLE
Click Here to download the datasheet
For Orders & Info
Description
The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It is a 50 ohm impedance interface with broadband capability of DC to 6 GHz and secure, fast and easy Snap-On/snap-off coupling. MMCX connectors have a smaller footprint than the MCX series, and are available in a wide array of configurations.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG178 |
| Coupling Mechanism | Threaded |
| Max Frequency (GHz) | 6 |
| VSWR | ≤1.25 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
