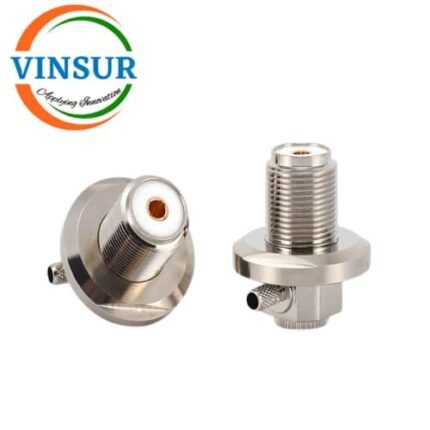

11C21215 — RF CONNECTOR – 50 OHMS , UHF FEMALE , STRAIGHT , BULK HEAD REAR MOUNT , CRIMP TYPE , RG58,142 CABLE

SKU: 11C21215

RF CONNECTOR: 50Ω
UHF MALE
STRAIGHT
CRIMP TYPE
BULKHEAD
RG-58 CABLE

Click Here to download the datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

CONNECTOR SPECIFICATIONS
Gender	Jack (Female)
Orientation	Right Angle
Termination Style	Cable – Crimp
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Contact Termination Style	Solder
Insulator Material	PTFE
Cable Type	RG58
Mounting Features	–
Max Frequency (GHz)	DC to 3GHz
VSWR	≤1.2
Polarity	Standard
Min. Temp. (Celsius)	-65°
Max. Temp. (Celsius)	+165°
