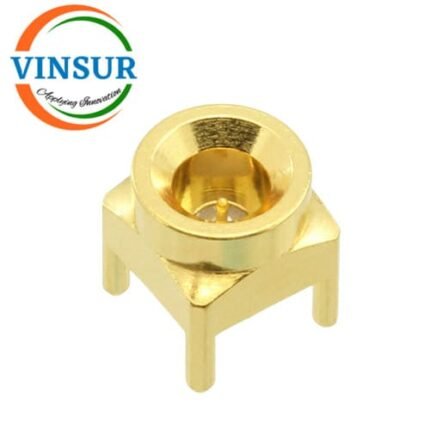

11H11945– RF CONNECTOR – 50OHMS, SMP MALE PCB THROUGH-HOLE

SKU: 11H11945

RF CONNECTOR: 50Ω
SMP MALE
STRAIGHT
PCB THROUGH HOLE

Click Here to download the datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

CONNECTOR SPECIFICATIONS
Type	RF Connector
Gender	Plug (Male)
Orientation	Straight
Termination Style	PCB – Through Hole
Impedance (Ohms)	50
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Contact Termination Style	Solder
Insulator Material	PTFE
Coupling Mechanism	Threaded
Mounting Feature	–
Max Frequency (GHz)	18Ghz
Polarity	Standard
Min. Temp. (Celsius)	-65
Min. Temp. (Celsius)	+165
