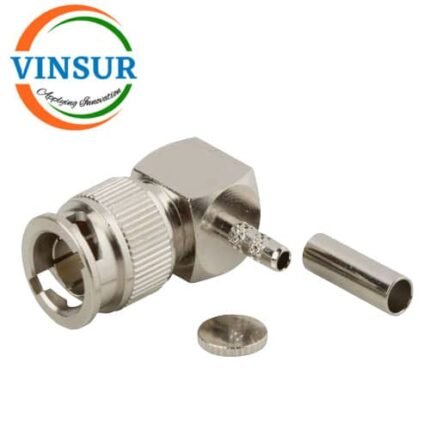

11P1201I — RF CONNECTOR — 75OHMS , MINI BNC MALE , RIGHT ANGLE , CRIMP TYPE , RG179 CABLE
- RF CONNECTOR: 75Ω
- MINI BNC MALE
- RIGHT ANGLE
- CRIMP TYPE
- RG-179 CABLE
Click Here to download the datasheet
For Orders & Info
Description
The Mini BNC connector series offers the high performance and wide compatibility of the original Amphenol 75 ohm BNCs. However, the Mini-BNC has a higher connector density, allowing for 40% more interconnects in the same area.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 75Ω |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG179 |
| VSWR | ≤ 1.3 Max |
| Max Frequency (GHz) | DC to 2Ghz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
