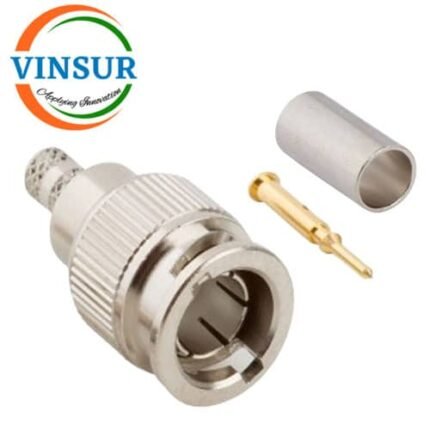

12P11014 — RF CONNECTOR 75OHMS , MINI BNC MALE , STRAIGHT , CRIMP TYPE , RG316-174, RG188, LMR100 CABLE
- RF CONNECTOR: 75Ω
- MINI BNC MALE
- STRAIGHT
- CRIMP TYPE
- RG316 CABLE
Click Here to download the datasheet
For Orders & Info
Description
The Mini BNC connector series offers the high performance and wide compatibility of the original Amphenol 75 ohm BNCs. However, the Mini-BNC has a higher connector density, allowing for 40% more interconnects in the same area.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 75Ω |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG316/174/188/LMR100 |
| VSWR | ≤ 1.3 Max |
| Max Frequency (GHz) | DC to 4Ghz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
