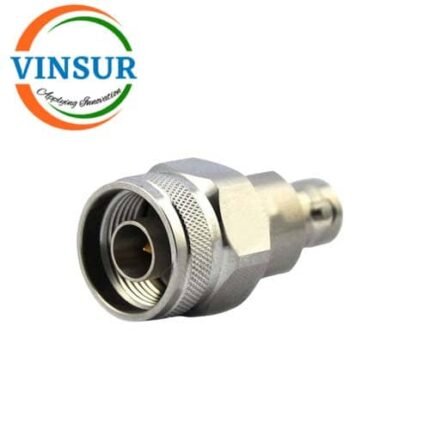

41116321 — RF ADAPTER – 50 OHMS, BNC FEMALE TO N-TYPE MALE STRAIGHT ADAPTER
- RF ADAPTER: 50Ω
- N MALE
- STRAIGHT
- BNC FEMALE
Click Here to download the datasheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | BNC |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | N |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 4GHz |
| VSWR(Max) | ≤1.15 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
