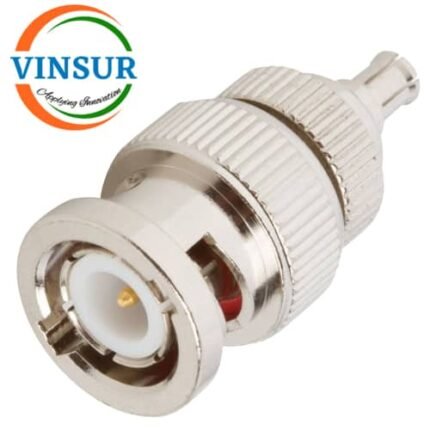

41310611 — RF ADAPTER – 50 OHMS, BNC MALE TO MCX MALE STRAIGHT ADAPTER

SKU: 41310611

RF Adapters
BNC Adapters
BNC to MCX Adapter
Male to Male

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	BNC
Gender1	Plug(Male)
Orientation	Straight
Mounting Features	–
Adapter Side 2 Series	MCX
Gender2	Plug(Male)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Max Frequency (GHz)	DC to 4 GHz
VSWR(Max)	≤1.20
Min. Temp. (Celsius)	-40°C
Max. Temp. (Celsius)	+85°C
