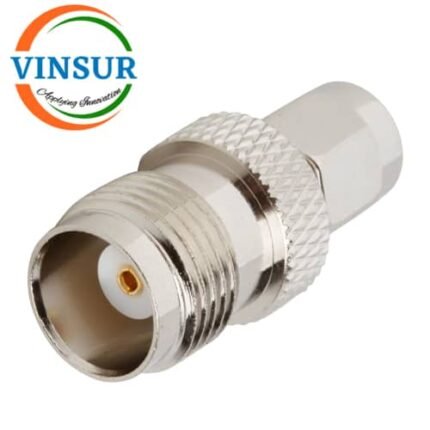

41410221 — RF ADAPTER – 50 OHMS, SMA MALE TO TNC FEMALE STRAIGHT ADAPTER
- RF Adapters
- TNC Adapters
- TNC to TNC Adapter
- Female to Female
- 4-hole flange
- 50Ω
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | TNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |

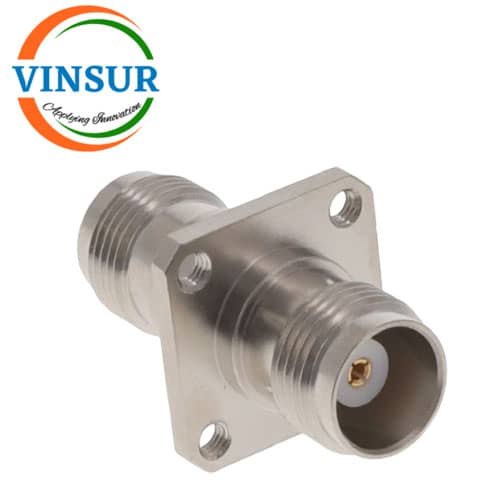

| Mounting Feature | 4-Hole Flange |
| Max Frequency (GHz) | DC to 18Ghz |
| VSWR | 1.44 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
