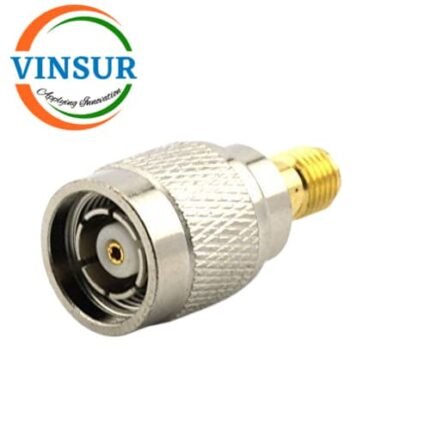

41420811-10 — RF ADAPTER – 50 OHMS, SMA FEMALE TO RP TNC MALE STRAIGHT ADAPTER

SKU: 41420811-10

RF Adapters
SMA Adapters
SMA to TNC Adapter
Reverse Polarity
50Ω

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	SMA
Gender1	Jack(Female)
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	TNC
Gender2	Plug(Male)
Orientation	Straight
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Coupling Mechanism	Threaded
Mounting Feature	–
Polarity	Reverse
Max Frequency (GHz)	DC to 6GHz
VSWR	≤1.2
Min. Temp. (Celsius)	-40
Max. Temp. (Celsius)	+85
