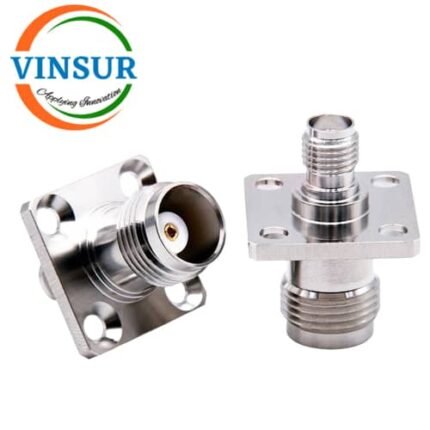

41424221 — RF ADAPTER – SMA FEMALE TO TNC FEMALE STARIGHT 4-HOLE FLANGE ADAPTER
- RF Adapters
- SMA Adapters
- SMA to TNC Adapter
- 4-Hole Flange
- 50Ω
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Jack(Female) |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | TNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Brass |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| Mounting Feature | 4-Hole Flange |
| Max Frequency (GHz) | DC to 18GHz |
| VSWR | ≤1.25 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
