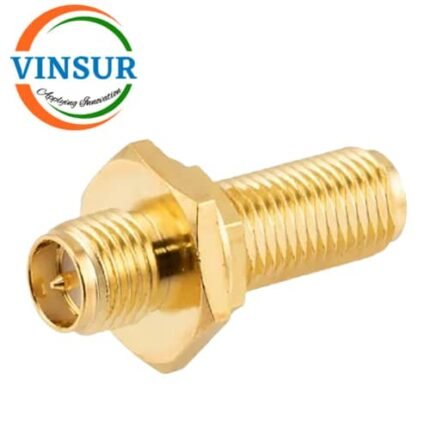

41921421 — RF ADAPTER – 50 OHMS, RP SMA FEMALE TO SMA FEMALE STRAIGHT BULKHEAD ADAPTER

SKU: 41921421

RF Adapters
SMA Adapters
SMA to SMA Adapters
Reverse Polarity
50Ω

For Orders & Info

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	SMA
Gender1	Jack(Female)
Orientation	Straight
Body Plating	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	SMA
Gender2	Jack(Female)
Orientation	Straight
Body Plating	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Mounting Features	Bulk Head
Impedance (Ohms)	50Ω
Insulator Material	PTFE
Max Frequency (GHz)	DC to 12.4GHz
VSWR	≤1.2
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
