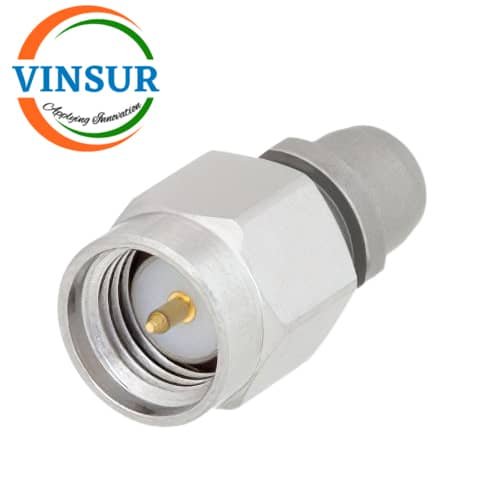

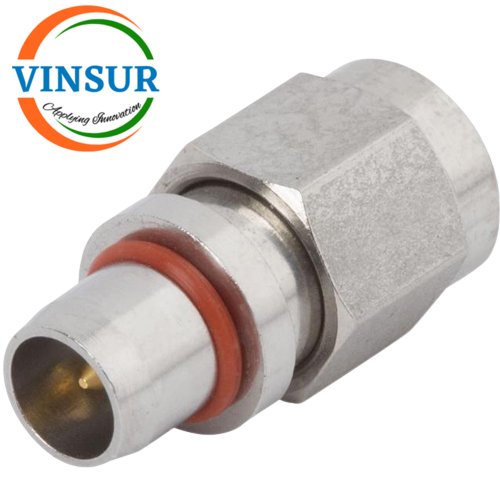

41F16411 — RF ADAPTER – 50 OHMS, BMA MALE STRAIGHT TO SMA MALE STRAIGHT ADAPTER

SKU: 41F16411

RF Adapters
BMA Adapters
BMA to SMA Adapter
Male to Male
Straight

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	BMA
Gender1	Plug(Male)
Orientation	Straight
Mounting Features	–
Adapter Side 2 Series	SMA
Gender2	Jack(Female)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Stainless Steel
Body Material	Beryllium copper
Contact Finish	Gold
Contact Material	Beryllium copper
Insulator Material	PTFE
Max Frequency (GHz)	DC to 18 GHz
VSWR	1.15:1
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
