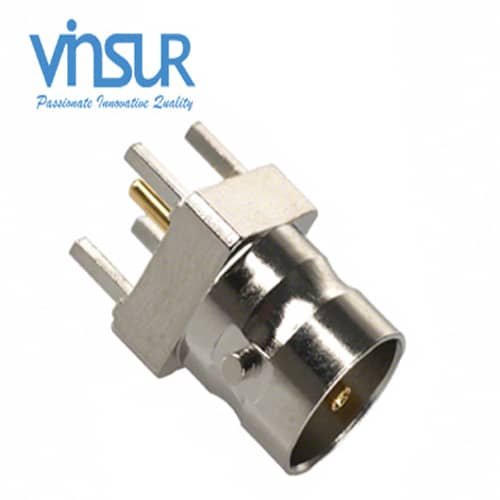

MINI BNC FML Str PCB-Through Hole 75 Ω
- RF CONNECTOR: 75Ω
- MINI BNC FEMALE
- STRAIGHT
- THROUGH HOLE
- PCB MOUNT
Click Here to download the datasheet
Description
The Mini BNC connector series offers the high performance and wide compatibility of the original Amphenol 75 ohm BNCs. However, the Mini-BNC has a higher connector density, allowing for 40% more interconnects in the same area.
| Type | RF Connector |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB – Through Hole |
| Impedance (Ohms) | 75 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| Mounting Feature | |
| Max Frequency (GHz) | 4 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
