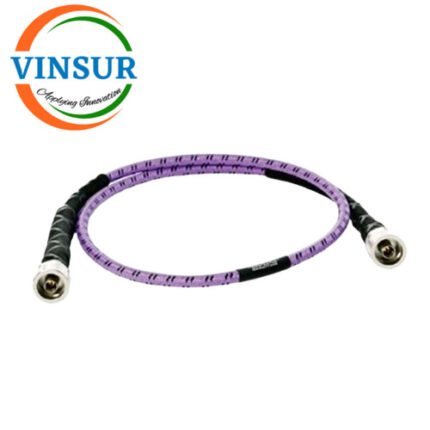

N MALE TO N MALE TESTING CABLE ASSEMBLY 4Mtr

N MALE TO N MALE TESTING CABLE ASSEMBLY 4Mtr

PART NO:-VSW-61110F110FCN-4D

SKU: VSW-61110F110FCN-4D Category: RF Testing Cable Assembly Tag: RF TESTING CABLE ASSEMBLY

Description

SPECIFICATION
RF Series 1	N type
Gender	Plug (male)
Coupling	Threaded
Orientation1 (body)	Straight
Termination style	Crimp
RF Series 2	N type
Orientation 2 (body)	Straight
Gender 2	Plug (male)
Cable Length	4 meter
Electrical Specification
Frequency	18 Ghz
Impedance	50 Ohms
Shielding effectiveness	-90 DB
Dielectric withstanding voltage	1000 VRMS
Mechanical Specification
Mating cycles	500
Mating torque	7-10 in –abs
Inter-mate ability	2.92mm
