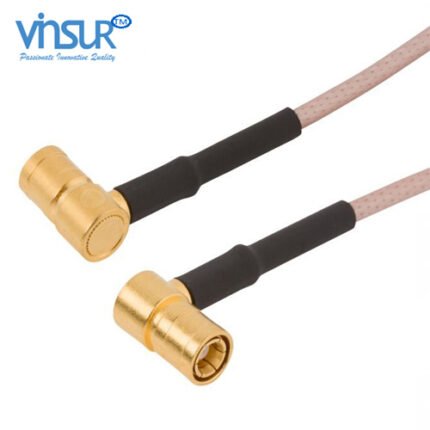

SMB Right Angle Male to SMB Right Angle Male RG-316 Cable Assembly

SMB Right Angle Male to SMB Right Angle Male RG-316 Cable Assembly

PART NO:-VSW-SMB-SMB-MM-3GCA

Applications:

  • Test and Measurement Laboratory Equipment
  • Two-Way Radio Communication Systems
  • WLAN
  • Antennas
  • Base Stations
  • Military/Defense
  • Telecom



Click Here To Download Datasheet

Categories: , Tags: , ,
Description

Specification:

Specification
RF Series 1 SMB
Gender Plug (Male)
Orientation1 (body) Right Angle
RF Series 2 SMB
Orientation 2 (body) Plug (Male)
Gender 2 Right Angle
Frequency 3.0GHz
Impedance 50 Ohms
VSWR 1Max
Cable Type RG316
