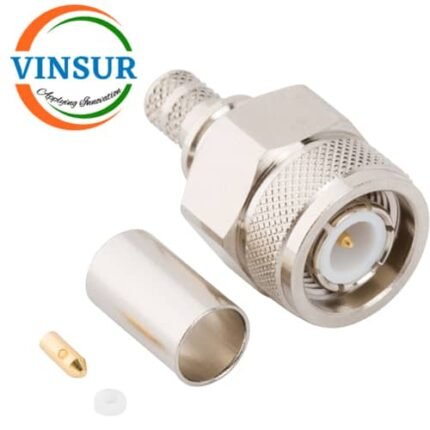

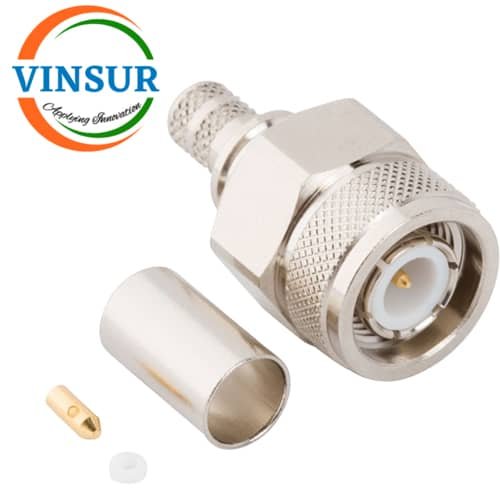

VSW-11211017 — RF CONNECTOR – 50 OHMS , TNC MALE , STRAIGHT, CRIMP TYPE , LMR-400 CABLE
- RF CONNECTOR: 50Ω
- TNC MALE
- STRAIGHT
- CRIMP TYPE
- LMR-400 CABLE
Click Here to download the datasheet
Description
The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BCN series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Insulator Material | PTFE |
| Cable Type | LMR400 |
| Coupling Mechanism | Threaded |
| Max Frequency (GHz) | DC-6Ghz |
| Polarity | Standard |
| VSWR | 1.3MAX |
| Min. Temp. (Celsius) | -40 |
| Max. Temp. (Celsius) | 85 |
