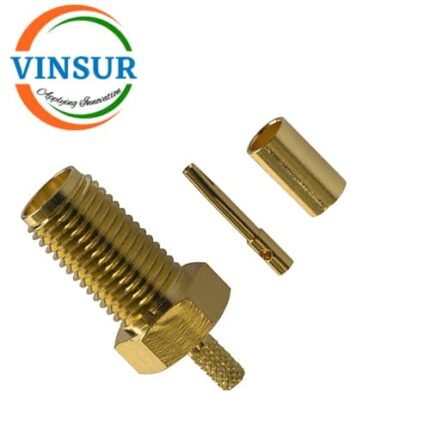

VSW-11521914-13G — RF CONNECTOR – 50OHMS,SMA FEMALE, STRAIGHT ,CRIMP TYPE , RG316, RG174, RG188, LMR100 CABLE
- RF CONNECTOR: 50Ω
- SMA FEMALE
- STRAIGHT
- CRIMP TYPE
- RG-316 CABLE
Click Here to download the datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG316 |
| Coupling Mechanism | Threaded |
| Mounting Feature | – |
| Max Frequency (GHz) | 13 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
