| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 2.92mm |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Adapter Side 2 Series | 2.92mm |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Stainless Steel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 40 GHz |
| Mating Cycles | 500 |
| VSWR(Max) | 1.15:1 Max. |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +105°C |

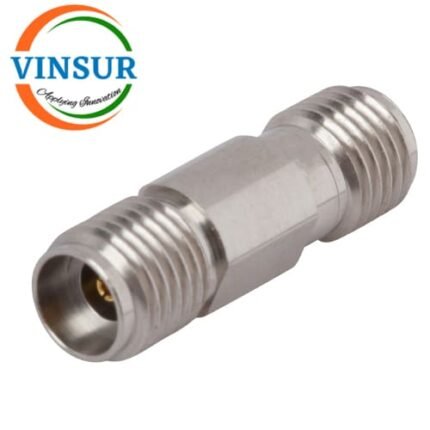

VSW-2.92-2.92-FFA — RF ADAPTER – 50 OHMS, 2.92MM FEMALE TO 2.92MM FEMALE ADAPTER
- RF Adapters
- 2.92mm Adapters
- 2.92mm to 2.92mm Adapter
- Female to Female
- Straight
- 50Ω
