SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.

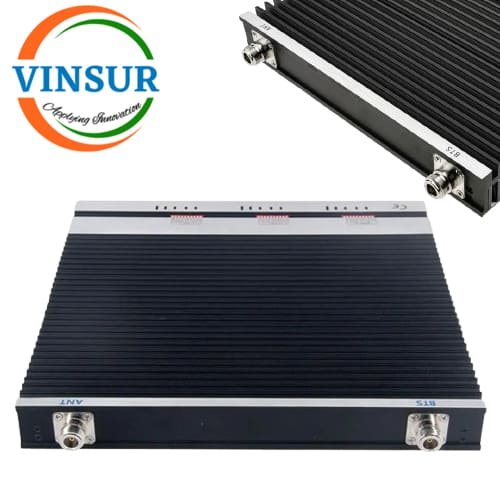

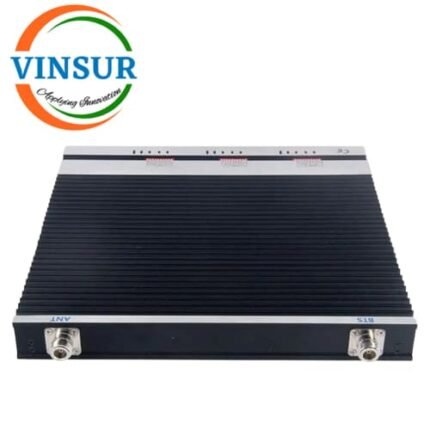

| SPECIFICATIONS | |
| Frequency Range | Uplink: 1920-1980 MHz |
| Downlink: 2110-2170 MHz | |
| Gain | >75 dB |
| Out Power UL & DL | 30 dBm min |
| Manual Gain Control | 31 dB in steps of 1 dB |
| Power Consumption | <30 watts |
| System (Average) Gain | +< 20 dB |
| Connectors | N type |
| Out of band Gain | <50 dB at 400 KHz |
| <40dB at 600 KHz | |
| <35 dB at 1 MHz | |
| <25dB at 5 MHz | |
| Noise Figure | <6 dB |
| VSWR | <1.5:1 |
| Inter Modulation Products various
Emission (ETS 3006094 GSM 11.26) at output |
36 dBm @ Khz-1Ghz ≤30 dBm @ 1Ghz-1Ghz |
| Input Supply | Ac 160-270 volts (50+2 Hz) |
| Visual Alarm | Green LED |
| Gain flatness and variation | <2dB |
