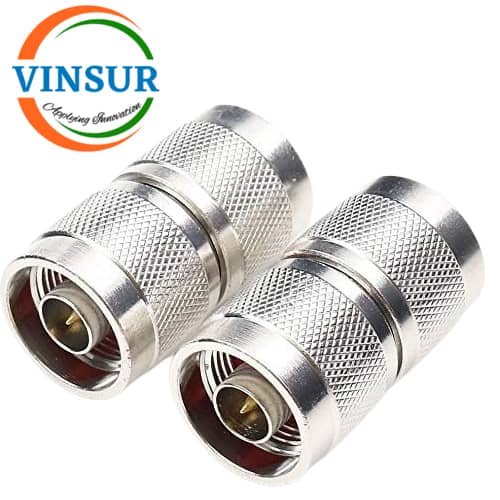

VSW-41116111-ADP — RF ADAPTER – 50OHMS, N MALE TO N MALE STRAIGHT ADAPTERS

SKU: VSW-41116111-ADP

RF Adapters
N Adapters
N to N Adapter
Male to Male
50Ω

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	N
Gender1	Plug(Male)
Orientation	Straight
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	N
Gender2	Plug(Male)
Orientation	Straight
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Mounting Features	–
Impedance (Ohms)	50
Insulator Material	PTFE
Max Frequency (GHz)	DC to 6GHz
VSWR(Max)	≤1.2 Max
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
