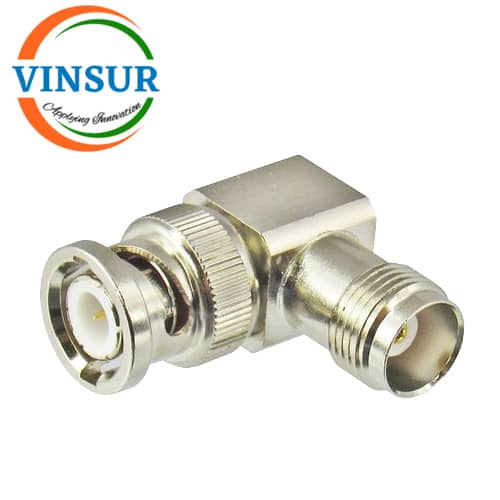

VSW-41310221-AD — RF ADAPTER – 50 OHMS, BNC MALE RIGHT ANGLE TO TNC FEMALE STRAIGHT ADAPTER

SKU: VSW-41310221-AD

RF Adapters
BNC Adapters
BNC to TNC Adapter
Male to Female
Right Angle

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	BNC
Gender1	Plug(Male)
Orientation	Right Angle
Adapter Side 2 Series	TNC
Gender2	Jack(Female)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Beryllium Copper
Insulator Material	PTFE
Max Frequency (GHz)	DC to 6 GHz
VSWR(Max)	≤1.2
Min. Temp. (Celsius)	-55°C
Max. Temp. (Celsius)	+100°C
