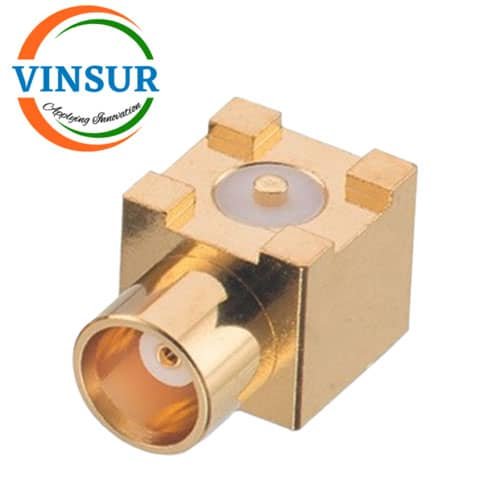

11722060 — RF CONNECTOR – 50 OHMS , MCX FEMALE , RIGHT ANGLE PCB-SURFACE MOUNT
- RF CONNECTOR: 50Ω
- MCX FEMALE
- RIGHT ANGLE
- SURFACE MOUNT
- PCB MOUNT
Click Here to download the datasheet
For Orders & Info
Description
The MCX (Micro Coaxial) series is available with 50 or 75 ohm options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy Snap-On/ snap-off coupling. MCX connectors were introduced in the 1980s and conform to the European CECC 22220 spec.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) Socket |
| Orientation | Right Angle |
| Termination Style | PCB-Surface Mount |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | 1.40 @ 6GHz |
| Max Frequency (GHz) | DC to 6GHz |
| Voltage Rating | 170 VRMS @ Sea Level |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | 105°C |
