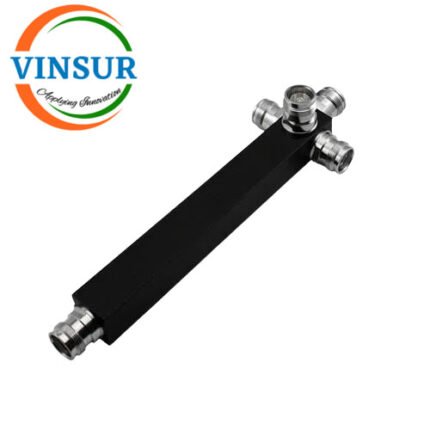

VSW-4PS-3827-160-41F — 4 WAY POWER DIVIDER
- RF Passive Device
- RF Power Divider
- 380-2700MHz
- 4-way
- 4.3-10 Female
For Orders & Info
Description
| SPECFICATION | |
| Split Chanel | 4-way |
| Split Loss(dB) | 6.0 |
| Insertion Loss(dB) | ≤0.6 |
| PIM(dBc) | -160dBc@2x43dBm |
| Freq(MHz) | 380-2700MHz |
| VSWR | ≤1.25 |
| Power Rating(W) | 300W (average Per Port) |
| Impedance | 50 ohm |
| Connector | 4.3-10 Female |
| Color | Black |
| Operating Temperature(℃) | -30~+65 |
| Weight(kg) | 0.85 |
