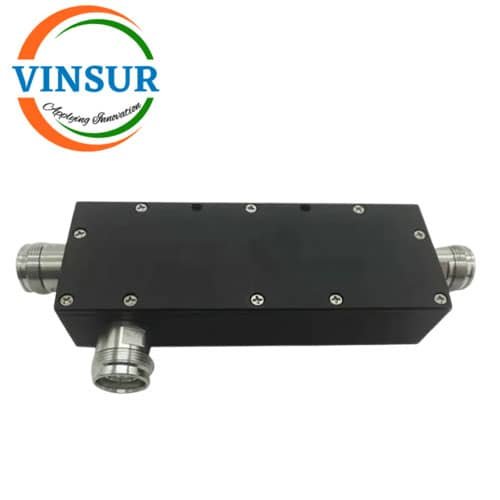

VSW-5G-4.3-F-DC — Directional Coupler (698-4200MHz, 4.3-10-Female)
- RF Passive Devices
- RF Coupler
- 698-4200MHz
- 4.3-10 Female
Description
| SPECIFICATION | Â | Â | Â | Â | Â | |
| Coupling(dB) | 20 | |||||
| Accuracy(dB) | ±1.4 | |||||
| Insertion Loss(dB) | ≤0.40 | |||||
| Isolation | ≥33 | |||||
| Freq(MHz) | 698-4200MHz | |||||
| VSWR | ≤1.30 | |||||
| PIM Rating(dBc) | -161dBc@2x43dBm | |||||
| Power Rating(W) | 300W (average Per Port) | |||||
| Impedance | 50 ohm | |||||
| Connector | 4.3/10-female | |||||
| Colour | Black | |||||
| Relative Humidity | 5-95% | |||||
