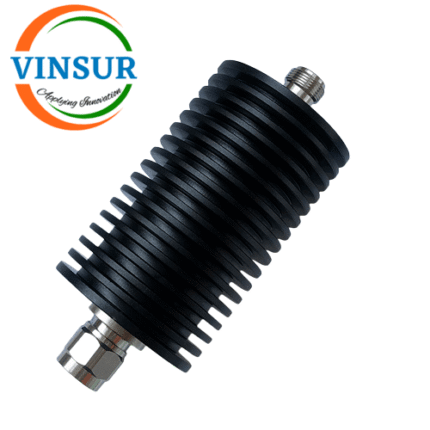

VSW-ATT100-40-4-NMF — RF COAXIAL FIXED ATTENUATOR (N MALE TO N FEMALE)
- RF Attenuator
- RF Coaxial Attenuator
- DC-6GHz
- Attenuation(40dB)
- N Male To N Female
For Orders & Info
Description
| SPECIFICATION | ||||||||||
| Attenuation(dB) | 6 | 7 | 8 | 10 | 13 | 15 | 20 | 30 | 40 | |
| Accuracy(dB) | ±0.8 | ±0.8 | ±0.8 | ±0.8 | ±0.8 | ±0.8 | ±0.9 | ±0.9 | ±1.0 | |
| Freq(MHz) | Â DC-6GHz | |||||||||
| VSWR | ≤1.30 | |||||||||
| Power Rating(W) | Â 100W (average) | |||||||||
| Impedance | 50 ohm | |||||||||
| Connector | N Male to N Female | |||||||||
| Colour | Â Black | |||||||||
| Operating Tem(℃) | -55°C to +125°C | |||||||||
| Weight(KG) | 0.90(approx.) | |||||||||
