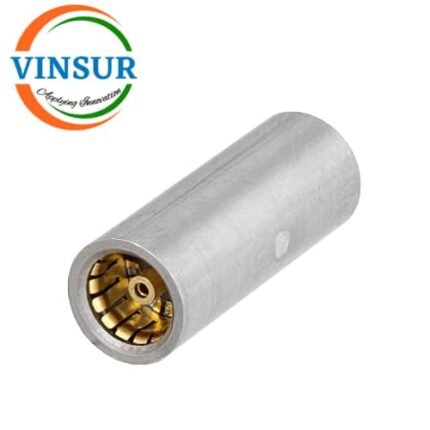

VSW-BMA-FF-ST-AD — RF ADAPTER – 50 OHMS, BMA FEMALE STRAIGHT TO BMA FEMALE STRAIGHT ADAPTER

SKU: VSW-BMA-FF-ST-AD

RF Adapters
BMA Adapters
BMA to BMA Adapter
Female to Female
Straight

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	BMA
Gender1	Jack(Female)
Orientation	Straight
Mounting Features	–
Adapter Side 2 Series	BMA
Gender2	Jack(Female)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Stainless Steel
Body Material	Beryllium copper
Contact Finish	Gold
Contact Material	Beryllium copper
Insulator Material	PTFE
Max Frequency (GHz)	DC to 22 GHz
Insertion loss	0.32dB
VSWR(Max)	≤1.2:1
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
