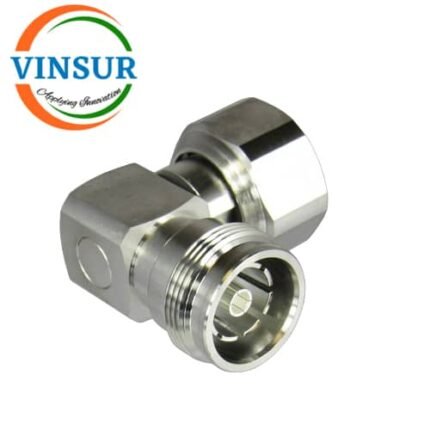

VSW-41G10G22-ADP — RF ADAPTER – 50 OHMS, 4.3-10 MALE TO 4.3-10 FEMALE RIGHT ANGLE ADAPTER
P/N :VSW-41G10G22-ADP
- RF Adapter
- 4.3-10 Adapters
- 4.3-10 to 4.3-10 Adapters
- Male to Female
- 50Ω
- Max Frequency (GHz) -DC~6GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 4.3-10 |
| Gender1 | Plug(Male) |
| Orientation | Right Angle |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | 4.3-10 |
| Gender2 | Jack(Female) |
| Orientation | Right Angle |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR(Max) | ≤1.20 Max |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
