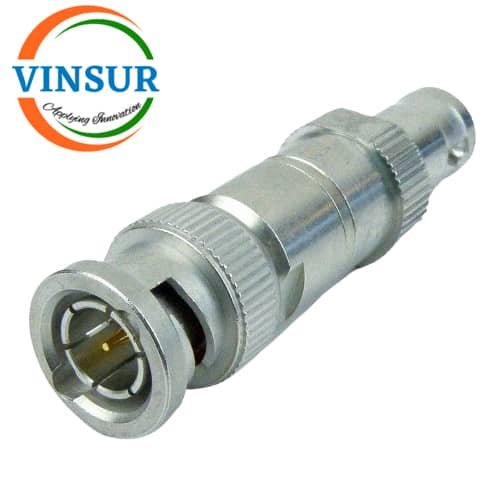

VSW-BNC-MF-2G-MP — 75 Ohm BNC Male to 50 Ohm BNC Female Operating from DC to 2 GHz Matching Pad
- RF Matching Pad
- BNC Male to BNC Female
- 75Ω
Description
| SPECIFICATIONS | |
| Adapter Side 1 Series | BNC |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 75 |
| Body Plating | Tri-Metal |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | BNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Dielectric Type | PTFE |
| Body Plating | Tri-Metal |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Input Power, CW | 1Watt |
| Max Frequency (GHz) | DC to 2GHz |
| VSWR(Max) | 1.5:1 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
