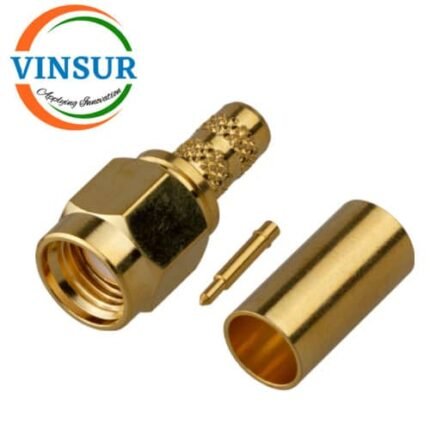

VSW-11511015-CN — RF CONNECTOR – 50 OHMS , SMA MALE , STRAIGHT , CRIMP TYPE ,LMR200 CABLE

SKU: VSW-11511015-CN
  • RF CONNECTOR: 50Ω
  • SMA MALE
  • STRAIGHT
  • CRIMP TYPE
  • RG-58/LMR200 CABLE
Click Here to download the datasheet
Click Here to download the Drawing

For Orders & Info

Description

SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.

CONNECTOR SPECIFICATIONS
Gender Plug (Male)
Orientation Straight
Termination Style Cable – Crimp
Impedance (Ohms) 50
Body Finish Gold
Body Material Brass
Contact Finish Gold
Contact Material Brass
Contact Termination Style Solder
Insulator Material PTFE
Cable Type LMR200
Mounting Features –
Max Frequency (GHz) DC to 6GHz
VSWR ≤1.2
Polarity Standard
Min. Temp. (Celsius) -65°
Max. Temp. (Celsius) 165°
