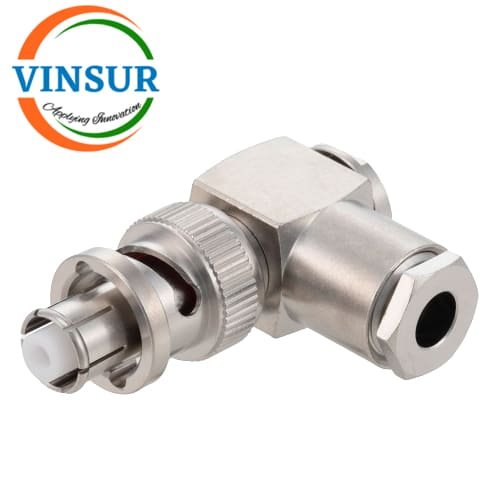

VSW-SHV-MRA-CL-58 — RF CONNECTOR – 50 OHMS , SHV MALE , RIGHT ANGLE , CLAMP TYPE , RG58, RG142, LMR200 CABLE
- RF CONNECTOR: 50Ω
- SHV MALE
- RIGHT ANGLE
- CLAMP TYPE
- RG-58 CABLE
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Mounting Features | – |
| Cable Type | RG58 |
| Max Frequency | 300MHz |
| VSWR | ≤ 1.3:1 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
