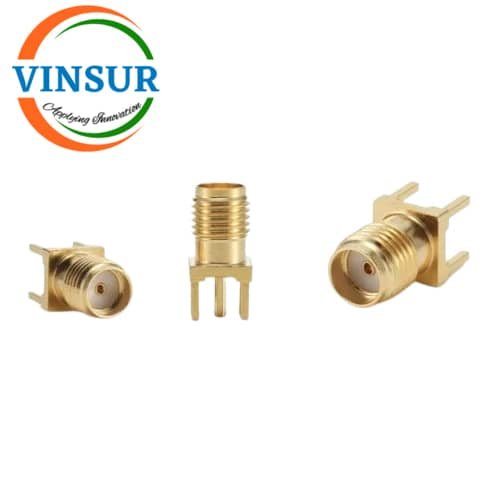

VSW-SMA-F-18G– RF CONNECTOR – 50OHMS , SMA FEMALE CONNECTOR PANEL MOUNT CONNECTOR
- RF CONNECTOR: 50Ω
- SMA FEMALE
- STRAIGHT
- THROUGH HOLE
- PCB MOUNT
Click Here to download the datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB – Through Hole |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder – Round Post |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| Mounting Feature | – |
| Max Frequency (GHz) | 18 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
