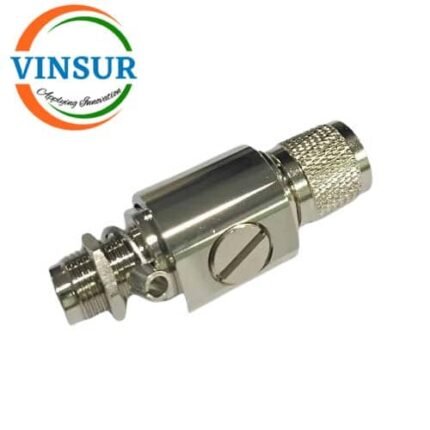

VSW-TNC-MF-SGA-ADP–RF Coaxial Surge Arrester(TNC Male to Female Bulk head)
P/N :-VSW-TNC-MF-SGA-ADP
- RF Passive Device
- RF Lightning Arrester or Surger Arrester
- DC to 3GHz,50Ω
- TNC Male to Female Bulk head
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |||
| Adapter Side 1 Series | TNC | ||
| Gender1 | Plug(Male) | ||
| Orientation | Straight | ||
| Body Plating | Nickel | ||
| Body Material | Brass | ||
| Contact Finish | Gold | ||
| Contact Material | Brass | ||
| Adapter Side 2 Series | TNC | ||
| Gender2 | Jack(Female) | ||
| Orientation
|
Straight | ||
| Body Plating | Nickel | ||
| Body Material | Brass | ||
| Contact Finish | Gold | ||
| Contact Material | Brass | ||
| Mounting Features | Bulkhead | ||
| Impedance (Ohms) | 50Ω | ||
| Voltage Protection Level(Up) | ≤600V | ||
| Maximum output power        | 100W | ||
| Insertion Loss(dB)Â Â Â Â Â Â | <0.2 | ||
| Max Frequency (GHz)Â Â Â Â Â | DC to 3GHz | ||
| VSWR(Max) | ≤1.18 | ||
| Min. Temp. (Celsius) | -40°C | ||
| Max. Temp. (Celsius) | +85°C | ||
