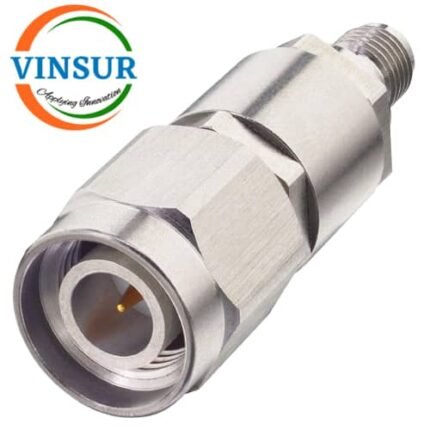

VSW-TNCM-SMAF-18G-ADP — RF ADAPTER – 50 OHMS, SMA FEMALE STRAIGHT TO TNC MALE STRAIGHT ADAPTER
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Jack(Female) |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | TNC |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 18 GHz |
| Insertion loss | ≤0.2 dB |
| VSWR(Max) | 1.15:1 Max. |
| Working Voltage | 335 V |
| Mating Cycles | ≥ 3000 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
