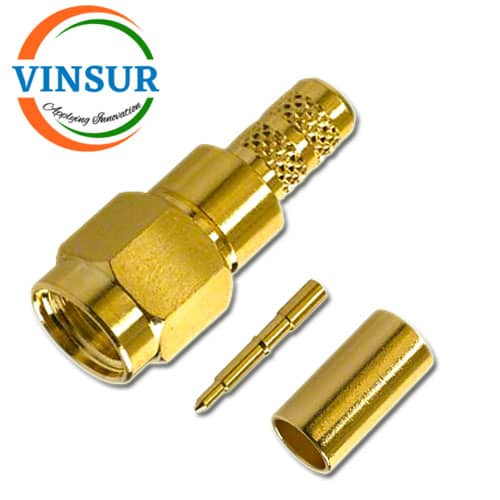

11511015-10 — RF CONNECTOR – 50 OHMS , SMA MALE , STRAIGHT , CRIMP TYPE , RG58,142 CABLE

SKU: 11511015-10

RF CONNECTOR: 50Ω
SMA MALE
STRAIGHT
CRIMP TYPE
RG-58 CABLE

Click Here to download the datasheet

For Orders & Info

Description

SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.

CONNECTOR SPECIFICATIONS
Gender	Plug (Male)
Orientation	Straight
Termination Style	Cable – Crimp
Impedance (Ohms)	50
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Contact Termination Style	Solder
Insulator Material	PTFE
Cable Type	RG58/RG142
Mounting Features	–
Max Frequency (GHz)	DC to 12.4GHz
VSWR	≤1.2
Polarity	Standard
Min. Temp. (Celsius)	-65°
Max. Temp. (Celsius)	165°

Min. Temp. (Celsius)	-65°
Max. Temp. (Celsius)	165°
