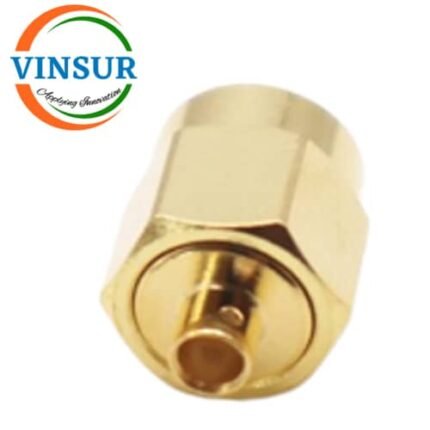

1151193C-55– RF CONNECTOR – 50OHMS , SMA MALE , STRAIGHT , SOLDER TYPE , FOR RG405(.86) CABLE
- RF CONNECTOR: 50Ω
- SMA MALE
- STRAIGHT
- SOLDER TYPE
- RG-405(0.86) CABLE
Click Here to download the datasheet
For Orders & Info
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Brass, Gold plating |
| Body Material | Gold plating |
| Body Finish | Brass, Gold plating |
| VSWR | 1.20@ 18GHz |
| Insulator Material | PTFE |
| Cable Type | RG405(0.86) |
| Max Frequency (GHz) | DC to 18 GHz |
| Polarity | Standard |
| Thread Direction | -55°C to +105°C |
| Insulation Resistance | ≥5000MΩ |
| Dielectric withstand voltage | 1000V |
