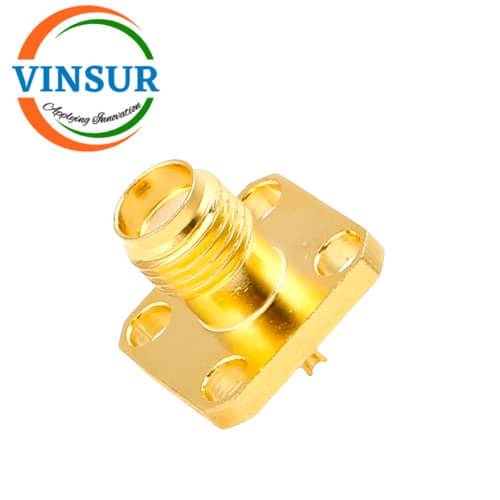

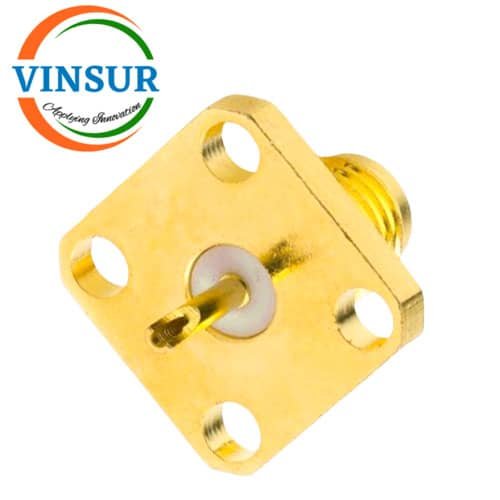

11521470-1– RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT , 4 HOLE FLANGE , SOLDER POT
- RF CONNECTOR: 50Ω
- SMA FEMALE
- STRAIGHT
- 4-HOLE FLANGE
- ROUND POST
- PCB MOUNT
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Solder Pot |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Features | 4-hole Flange |
| Insulator Material | PTFE |
| VSWR | 1.20 @ 18GHz |
| Max Frequency (GHz) | DC to 18GHz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +105°C |
